DTC    C1553    PIG Power Supply Overvoltage


DESCRIPTION

If the power steering ECU assembly determines that the motor power source voltage and the IG voltage are not within the specified range, it stops the power assist as a fail-safe function.

DTC No.
DTC Detection Condition
Trouble Area
C1553
  1. PIG power source overvoltage
  2. IG power source overvoltage
  1. IG and PIG power source circuits
  2. Power steering ECU assembly

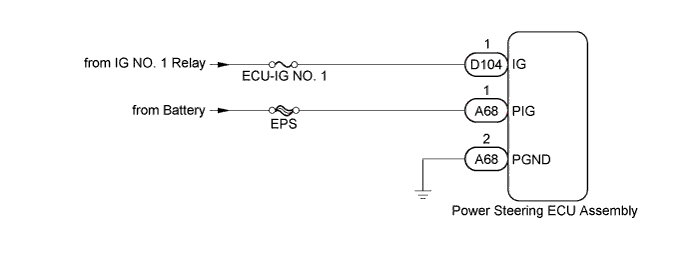

WIRING DIAGRAM


C243282E01


INSPECTION PROCEDURE

NOTICE:
  1. If the power steering ECU assembly has been replaced, perform the torque sensor zero point calibration and assist map writing (Click here).
  2. Inspect the fuses for circuits related to this system before performing the following inspection procedure.
1.CHECK HARNESS AND CONNECTOR (IG)


    C233849E04
  1. Disconnect the power steering ECU assembly connectors.

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    Switch Condition
    Specified Condition
    D104-1 (IG) - A68-2 (PGND)
    Ignition switch ON
    11 to 14 V
    Text in Illustration
    *a
    Rear view of wire harness connector
    (to Power Steering ECU Assembly)


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


2.CHECK HARNESS AND CONNECTOR (POWER STEERING ECU ASSEMBLY - BODY GROUND)
C233847E02
  1. Disconnect the power steering ECU assembly connector.

  1. Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection
Switch Condition
Specified Condition
A68-1 (PIG) - Body ground
Ignition switch ON
11 to 14 V
  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    Condition
    Specified Condition
    A68-2 (PGND) - Body ground
    Always
    Below 1 Ω
    Text in Illustration
    *a
    Rear view of wire harness connector
    (to Power Steering ECU Assembly)


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE POWER STEERING ECU ASSEMBLY (Click here)
